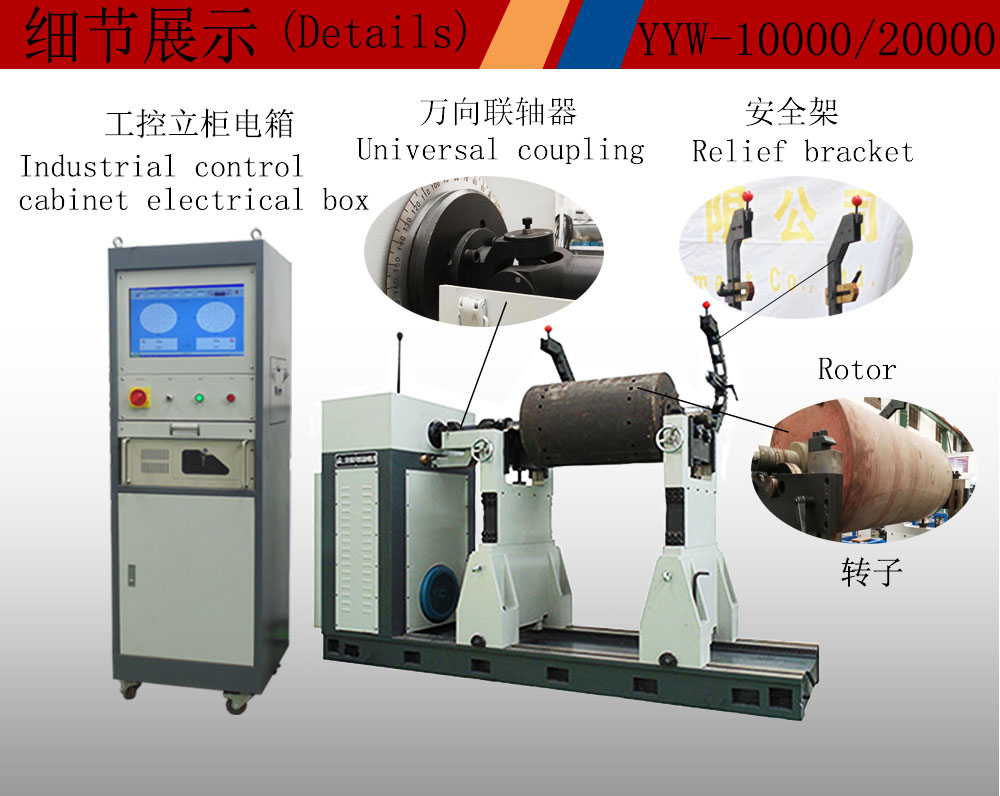

1W/2W KG Universal Joint Drive Balancing Machine
DESCRIBE
Product feature：
- Special designed brackets can effectively transmit mechanical force.
- The durable and reliable sensor possesses high sensitivity.
- The permanent calibration brings high accuracy.
- Driven by universal coupling,transmit the power steadily.
- Applicable to rotors which can't be driven by belt or need large power.
- Advanced electrical measuring system and friendly man-machine interface.
Range of application：
YYW series are applicable for blower, large-sized motor, pump, centrifuge, rubber roller, drying cylinder, internal-combustion engine etc.
PARAMETER
|
Technical Parameters |
YYW-10000 |
YYW-20000 |
|
|
Maximum weight of workpiece(kg) |
10000 |
20000 |
|
|
Maximum diameter of workpiece(mm) |
3000 |
||
|
The distance between two bearing pedestals(mm) |
Min320 |
Min450 |
|
|
Distance from coupling flange of drive shaft to center of farthest bearing(mm) |
4000 |
5000 |
|
|
Journal diameter on roller arriages(mm) |
60~400 |
||
|
Spindle speed(r/min) |
Variable frequency stepless speed regulation |
||
|
Motor power(kw) |
22 |
55 |
|
|
Universal coupling torque(N.m) |
2250 |
5000 |
|
|
Minimum achievable Rsidual(emar) |
≤1g.mm/kg |
||
|
Unbalance reduction ratio(%) |
≥90% |
||
